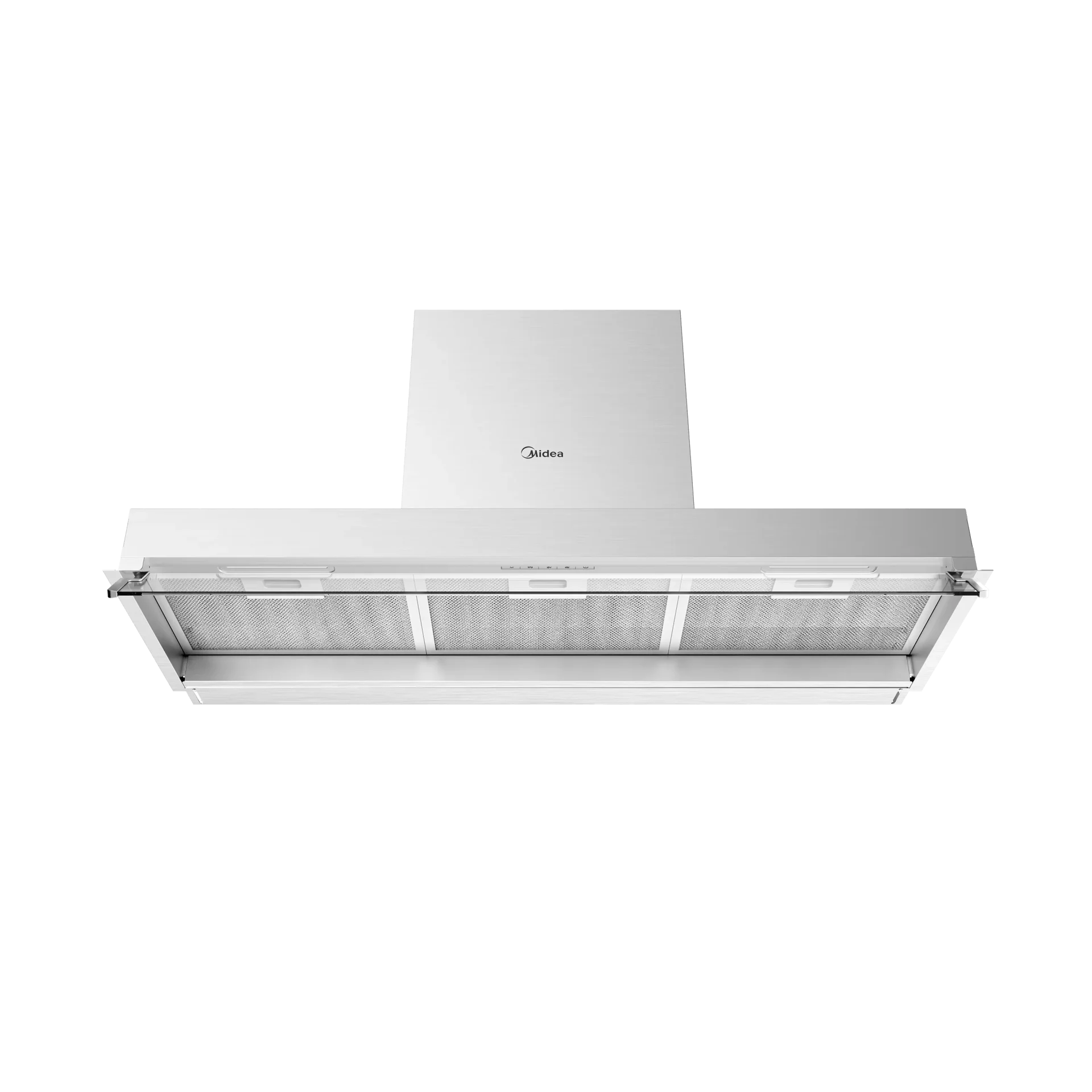

Midea MCTB906 Box Built-in Extractor Hood (90cm)

Product overview

• Brand: Midea
• Model: MCTB906
• Product type: Built-in / integrated cooker hood
• Series: Box / built-in
• Width: 90 cm
• Finish: Stainless Steel / Inox
• Installation: Built-in
• Operation: Extraction / recirculation
• Energy Efficiency Class: C
• Controls: Soft-touch controls
• Speed settings: 3

Extraction performance

• Maximum airflow: 630 m³/h
• Minimum airflow: 290 m³/h
• Maximum noise level: 67 dB(A)
• Minimum noise level: 53 dB(A)
• Air outlet diameter: 150 mm
• Motor input power: 215 W
• Total rated power: 218 W

The 630 m³/h figure is confirmed by Midea’s official product page and manual. EPREL records the minimum airflow as 290 m³/h and maximum sound power as 67 dB.

Filters

• Grease filters: Stainless-steel
• Number of grease filters: 3
• Grease filters dishwasher safe: Yes
• Grease filtering efficiency class: D
• Carbon filters: 2
• Carbon filters included: Yes
• Recirculation operation: Yes

Lighting

• Lighting: LED
• Number of lights: 2
• LED power: 1.5 W each
• Total lighting power: 3 W
• Lighting efficiency class: A

The 2 × 1.5 W specification is confirmed in the Midea manual and product information.

Energy information

• Energy efficiency class: C
• Annual energy consumption: 93.5 kWh/year (EPREL; commonly rounded to 94 kWh/year)
• Fluid Dynamic Efficiency: 18.8
• Fluid Dynamic Efficiency Class: C
• Lighting Efficiency: 50
• Lighting Efficiency Class: A
• Grease Filtering Efficiency: 70
• Grease Filtering Efficiency Class: D
• Standby power: 0.49 W
• EPREL registration: 2844741

Dimensions

• Width: 892 mm
• Depth: 300–340 mm adjustable
• Height: 338 mm

Midea’s Italian product page gives 892 × 300–340 × 338 mm. The 300–340 mm installation depth is also confirmed by Midea France.

Electrical

• Voltage: 220–240 V
• Frequency: 50 Hz
• Rated power: 218 W
• Motor power: 215 W
• Lighting: 2 × 1.5 W

Installation / design features

• 90 cm integrated cooker hood
• Suitable for extraction or recirculation
• Adjustable installation depth 300–340 mm
• 150 mm air duct
• Stainless-steel grease filters
• Dishwasher-safe grease filters
• Carbon filters supplied
• Soft-touch controls
• LED lighting
• Anti-return flap
• Flexible ducting supplied
• Steam protection / extended side edges
• Designed to allow use of cupboard space above the hood

Midea states that the design allows up to 20 kg of usable cupboard storage space and is designed to accommodate cabinet depths from 300–340 mm.

Weight

• Net weight: approximately 15 kg
